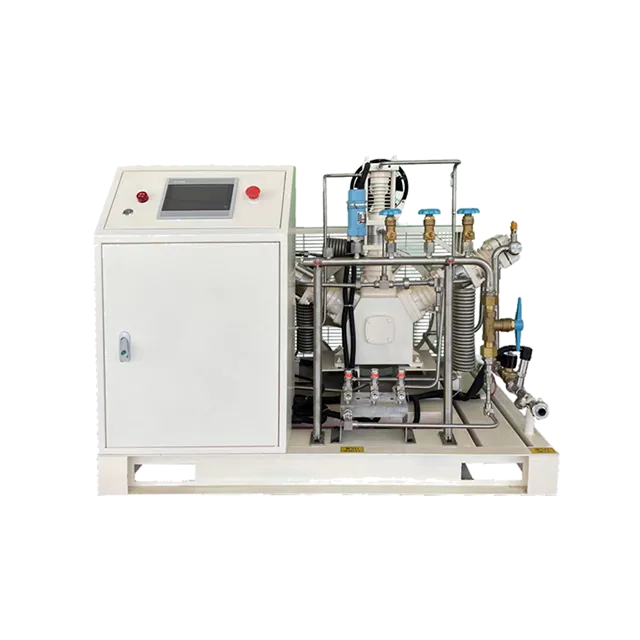

The CanGas oil-free high-pressure oxygen compressor is designed for filling high-pressure oxygen cylinders, facilitating oxygen storage and transport. The filling pressure ranges from 15 MPa to 20 MPa, with a maximum of 30 MPa. The filling flow rate varies from 1 Nm³/h to 300 Nm³/h. It is particularly suitable for filling PSA oxygen systems. Features include clean, oil-free operation, simple operation, reliable quality, low speed, low noise, and the ability to run continuously for long periods.
Model | Capacity （Nm3/h） | Inlet O2 pressure （Mpa） | Outlet O2 pressure （Mpa） |
GOW-1～3/4-150 | 1～3 | 0.3-0.4 | 15 |
GOW-4～12/4-150 | 4～12 | 0.3-0.4 | 15 |
GOW-10～18/4-150 | 10～18 | 0.3-0.4 | 15 |
GOW-13～40/4-150 | 13～60 | 0.3-0.4 | 15 |
GOW-50～80/4-150 | 40～80 | 0.3-0.4 | 15 |
GOW-80～120/4-150 | 80～120 | 0.3-0.4 | 15 |
Each Project is Custom-Built!
SPEAK WITH AN EXPERTAt CAN GAS, we listen to your demands and design the best possible solution for you. You can get the full line from air compressor to high quality cylinders – whatever your need may be.
We design your specific solution based on application, capacity, purity, pressure, classification requirements, ambient conditions, and height above sea level.
