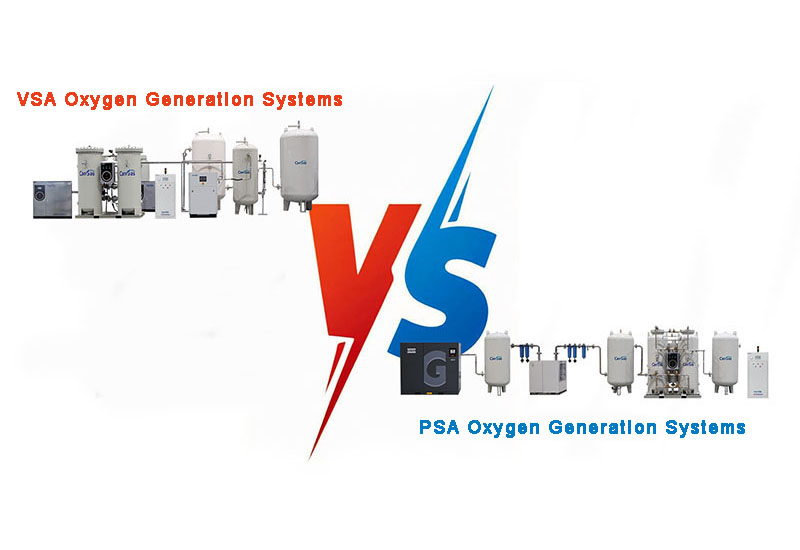

Differences Between VSA and PSA Oxygen Generation Systems

VSA (Vacuum Pressure Swing Adsorption) and traditional PSA (Pressure Swing Adsorption) oxygen generation systems are two types of on-site ambient-temperature air separation technologies. While they share similar working principles, they exhibit distinct characteristics. This article discusses their differences in equipment composition, performance parameters, maintenance, and economic benefits.

Equipment Composition

• Gas Supply:

o VSA systems use blowers and vacuum pumps.

o PSA systems use air compressors.

• Oxygen Generator:

o VSA adsorption towers have a smaller height-to-diameter ratio with high-efficiency molecular sieves, resulting in a more compact design.

o PSA adsorption towers have a larger height-to-diameter ratio and typically use sodium-based molecular sieves, leading to taller structures.

• Water Removal:

o VSA systems do not require dryers or refrigerated dryers.

o PSA systems require dryers for the adsorption towers.

• Instrument Air:

o VSA systems include a separate instrument air system.

o PSA systems draw instrument air directly from the main pipeline.

Performance Parameters

• Working Pressure:

o VSA operates at -50 to +55 kPa (sub-atmospheric to slight positive pressure).

o PSA operates at 0–0.6 MPa (high-pressure range).

• Gas Purity:

o Both systems achieve >90% oxygen purity, adjustable based on requirements.

• Energy Consumption:

o PSA consumes over twice the energy of VSA. The energy-saving advantage of VSA becomes more significant at larger gas output scales.

• High-Altitude Applicability:

o VSA performance is less affected by high altitudes.

o PSA efficiency declines noticeably at high altitudes.

• Oxygen Production Capacity:

o VSA supports large-scale industrial oxygen production.

o PSA is suited for small-to-medium-scale applications.

Maintenance

• VSA Systems:

Scroll blowers have a simple, durable structure, requiring only periodic replacement of intake filters.

• PSA Systems:

Require regular replacement of filter elements, oil changes, and maintenance of lubrication systems.

Economic Benefits

• VSA:

Higher initial investment but lower maintenance and energy costs. Economic advantages are pronounced in long-term operations or high-altitude deployments.

• PSA:

Lower initial investment but higher operational and maintenance expenses.

In summary, both systems have trade-offs in application scenarios, site conditions, and economics. Users should select based on specific needs, prioritizing factors like scale, location, and total lifecycle costs.
