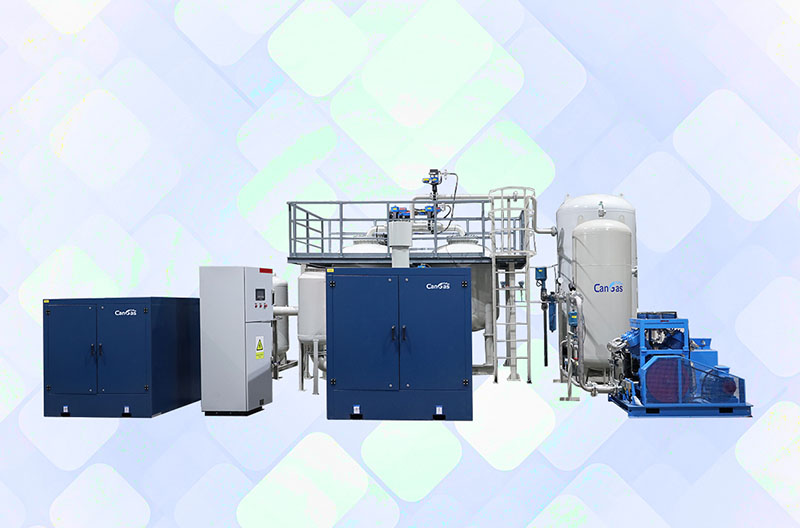

An In-Depth Look at the Valve Timing Control Mechanism for VPSA Oxygen Generators

Valve timing control in VPSA (Vacuum Pressure Swing Adsorption) oxygen generators involves the precise regulation of valve opening and closing times to ensure that each step of the oxygen production process is executed in the correct sequence. This function is both critical and complex, as it plays a key role in achieving efficient, low-energy operation. The control logic is closely aligned with the VPSA operating cycle and centers on the following core stages.

Valve Timing Control for Dual-Tower VPSA Oxygen Generators

1. Adsorption and Desorption Cycle

VPSA oxygen generators typically use a dual-tower structure, with the adsorption towers alternating through the switching of process control valves. Typical timing steps include:

•  Adsorption stage: A blower delivers air to the VPSA unit. After pretreatment, the air is directed to the adsorption tower. The inlet valve opens, allowing air to enter the tower for adsorption. During this process, impurities such as nitrogen and carbon dioxide are preferentially adsorbed by the molecular sieve, while oxygen is discharged as the product gas.

• Pressure equalization stage: After adsorption is completed, a pressure equalization operation is performed between the two towers to balance their pressures. The equalization valve opens, allowing a portion of the gas to flow from the high-pressure tower to the low-pressure tower until the pressures are balanced.

• Vacuum desorption stage: Desorption is the reverse of adsorption; the pressure inside the adsorption tower is reduced to release the adsorbed gases from the molecular sieve. The desorption valve and the normally open solenoid valve upstream of the vacuum pump open, and gas is extracted from the tower by the vacuum pump, completing the desorption process.

• Regeneration stage: After desorption, the adsorption tower must be repressurized to prepare for the next adsorption cycle. The pressurization valve opens, allowing a portion of the product oxygen to flow back into the tower to build up pressure, readying it for the next round of adsorption.

2. Synchronization of Valve Operations

• Rapid response of sequence-controlled valves: Valves must complete their opening and closing actions within a very short timeframe to ensure accurate switching of gas flow.

• Timing coordination: During switching between forward and reverse cycles or during fault handling, valve operations must be coordinated with the start-stop sequences of blowers and vacuum pumps to prevent backflow or pressure surges.

Differences in Valve Timing Control Between Multi-Tower and Dual-Tower VPSA Oxygen Generators

Multi-tower (three or more towers) and dual-tower VPSA oxygen generator systems differ significantly in control logic and valve operation rhythms, particularly in process sequencing, pressure equalization design, and oxygen production stability.

1. Core Processes and Valve Operation Logic

The valve timing in a dual-tower system follows a typical “binary alternating” pattern: the two adsorption towers strictly alternate between adsorption, desorption, and pressurization steps through valve switching. The two towers operate in opposite phases, so valve switching essentially toggles back and forth between them.

Multi-tower systems use a “staggered parallel” logic. A PLC distributes process timing evenly across the towers, ensuring that at least one tower is in the adsorption phase at any given time, while the others are in pressure equalization, desorption, or pressurization stages. In a four-tower system, for example, the process states are staggered by one-quarter of a cycle; in a three-tower system, they are staggered by one-third of a cycle. Valve operations must precisely match this staggered rhythm to achieve seamless process transitions across the towers, rather than simple pairwise alternation.

2. Pressure Equalization Design

Pressure equalization in a dual-tower system is relatively simple: a high-pressure tower that has completed adsorption and a low-pressure tower that has completed desorption are directly connected through an equalization valve. Once pressure balance is achieved, the valve closes and the process moves to the next step. This equalization method is single-stage and occurs only between the two towers.

In multi-tower systems, pressure equalization design is more complex and typically uses “multi-stage equalization” or “sequential equalization.” For example, in a four-bed system, multi-step equalization sequences such as “upper equalization” and “lower equalization” may be implemented. A high-pressure bed that has finished its adsorption phase first undergoes primary equalization with a bed at intermediate pressure, followed by secondary equalization with a low-pressure bed. In contrast, a three-bed system performs inter-bed equalization sequentially according to a preset timing schedule. Such multi-step equalization requires precise control over the opening and closing sequences of multiple sets of equalization valves to prevent pressure interference between beds.

3. Valve Switching Frequency and Oxygen Production Stability

In a two-bed system, only two beds operate alternately, so the valve switching frequency is relatively high to maintain continuous oxygen production. This places stringent demands on valve response speed and timing control precision.

Multi-bed systems significantly reduce the switching frequency of individual valve sets by staggering bed operation. For example, at the same oxygen production rate, the adsorption time for a single bed in a four-bed system is twice that of a two-bed system. This results in longer valve switching intervals and greater tolerance for timing variations. In addition, parallel operation ensures that at least one bed remains in a stable adsorption state at any given time. Even if there is a slight deviation in the operation of a specific valve set, the overall stability of oxygen production remains largely unaffected, resulting in minimal fluctuations in product oxygen pressure and purity.

4. Control System Complexity

The valve timing control logic for a two-bed system is relatively straightforward. It mainly involves feed, desorption, and product oxygen valves. The PLC program primarily relies on alternating triggering, making commissioning and maintenance relatively simple.

Control complexity increases significantly in multi-bed systems, which require real-time monitoring of multiple beds, including pressure, adsorption saturation, and process stage. The valves to be controlled include multiple sets of feed, desorption, and equalization valves, with the number increasing as the number of beds increases. The PLC program must precisely calculate timing offsets between beds to coordinate equalization, adsorption, and desorption actions, thereby preventing inter-bed pressure interference or process overlap. This places higher demands on the control system’s computational capabilities and commissioning precision.

Both two-bed and multi-bed VPSA oxygen generators share the same fundamental processes and core objective: ensuring continuous and stable oxygen production. Multi-bed systems feature more complex valve timing designs but offer lower switching frequency, higher energy efficiency, and improved oxygen output stability, making them suitable for medium- to large-scale oxygen supply projects. In contrast, dual-bed systems use simpler timing control and have lower equipment costs, making them well suited for small- to medium-scale oxygen production needs.
