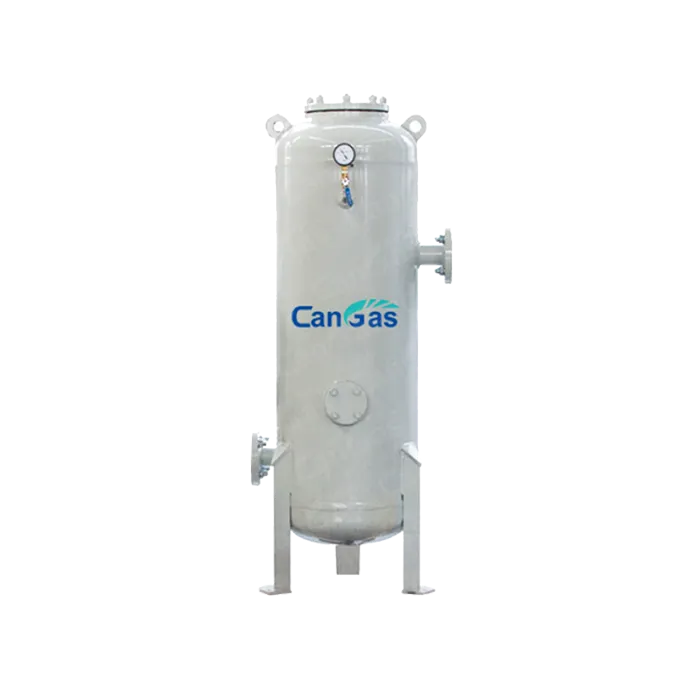

The activated carbon tower filter is a high-efficiency gas purification device widely used in compressed air and industrial gas treatment systems. It utilizes high-quality activated carbon as the adsorption medium, featuring a large specific surface area and strong adsorption capacity. It effectively removes oil vapor, odors, hydrocarbons (such as VOCs), and other harmful gases from the air. After treatment, the residual oil content in compressed air can be reduced to ≤0.003 mg/m³ (typical value), meeting high-quality air requirements.
With a compact structure, stable operation, and easy maintenance, the system can be used in combination with refrigerated air dryers and precision filters. It provides clean and contamination-free air for downstream equipment, extends the service life of key components, and ensures long-term reliable and efficient system operation.
Model | Capacity （m3/min） | Inlet&Outlet Size | Dimension （mm×mm） | Total Weight （Kg） |
CAQ-02A | 2 | DN20 | φ219x966 | 52 |
CAQ-02 | 2 | DN25 | φ219x966 | 52 |
CAQ-04A | 4 | DN25 | φ300x1050 | 80 |
CAQ-04 | 4 | DN40 | φ300x1050 | 80 |
CAQ-07A | 7 | DN32 | φ350x1162 | 135 |
CAQ-07 | 7 | DN40 | φ350x1162 | 135 |
CAQ-10A | 10 | DN40 | φ400x1342 | 200 |
CAQ-10 | 10 | DN50 | φ400x1342 | 200 |
CAQ-16A | 16 | DN50 | φ450x1638 | 280 |
CAQ-16 | 16 | DN65 | φ450x1638 | 280 |
CAQ-30A | 30 | DN65 | φ500x1918 | 400 |
CAQ-30 | 30 | DN80 | φ500x1918 | 400 |
CAQ-45A | 45 | DN80 | φ550x2143 | 520 |
CAQ-45 | 45 | DN100 | φ550x2143 | 520 |
CAQ-60 | 66 | DN125 | φ600x2293 | 640 |
Each Project is Custom-Built!
SPEAK WITH AN EXPERTAt CAN GAS, we listen to your demands and design the best possible solution for you. You can get the full line from air compressor to high quality cylinders – whatever your need may be.
We design your specific solution based on application, capacity, purity, pressure, classification requirements, ambient conditions, and height above sea level.
